PLL1700

Information - Help
ID = 74251

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  IC - Integrated Circuit
Identical to PLL1700

Base Wires
Description

Aufbau/internal: IC (CMOS);
Form/Case/Outline: SSOP-20 (PLL1700E);
Type/Application: Multi-Clock Generator PLL for MPEG2 applications etc.;
Daten/electr.data: Vdd: 3.3 / 5 V; Idd: 11 / 16 mA; Pd: 75 mW; FM: 27 MHz; t op: -25...+85 °C;
Manufactured by BURR-BROWN -


Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

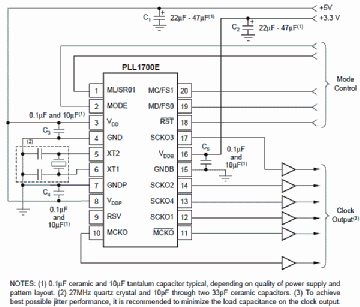

PLL1700: BB
Günther Stabe † 19.8.20

pll1700_s.png PLL1700: BB
Günther Stabe † 19.8.20

PLL1700: BB
Günther Stabe † 19.8.20
