PQ12RF1V

Information - Help
ID = 66504

Country:
Japan
Brand: Common type Japan tube/semicond.
Tube type:  IC - Integrated Circuit   Power-supply
Identical to PQ12RF1V
Base Wires
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Kond., __ Dioden);
Form/Case/Outline: ~ TO-220, 4 Pins: DC in - DC out - GND - Adjustment*;
Type/Application: 4-terminal 1 A Output Low Power-Loss Voltage Regulator, *)Minute Adjustment +/- 10 %;
Daten/electr.data: V in max: 35 V; I out: 12 V; Imax out: 1 A; Ptot: 15 W; tmax j: 150 °C.
Variants: PQ05RF1V (5 V) / PQ09RF1V (9 V);
Manufactured by Sharp (J) -


Dimensions (WHD)
incl. pins / tip		 10 x 17 x 5 mm / 0.39 x 0.67 x 0.20 inch
Weight 2 g / 0.07 oz
Information source - - Manufacturers Literature   Sharp

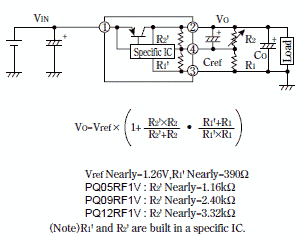

PQ12RF1V: Sharp
Günther Stabe † 19.8.20
pq12rf1v_s.png PQ12RF1V: Sharp
Günther Stabe † 19.8.20
PQ12RF1V: Sharp
Günther Stabe † 19.8.20
