RH5RL25
|
|
|
Tube type: |
IC - Integrated Circuit Power-supply |
|
Identical to |
RH5RL25
|
Base |
Wires
|
Description |
Aufbau/Content: IC (CMOS);
Form/Case: TO-92 | SOT-89 | SOT23-5 (RH5RL25AA) Anschlussfolge GND-Vin-Vout[-NC-NC];

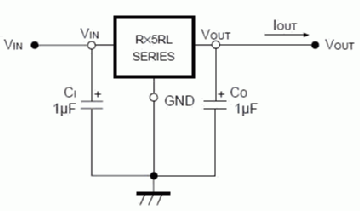

Applikation/Type: Voltage Regulator 2.5 V;
Daten/electr.data: Vin max: 12 V; Vout: 2.5 V; Iout max: 150 mA; Pd: <300 mW; t op: -40...+85 °C;
Manufactured by RICOH -
|
Dimensions (WHD) incl. pins / tip |
5 x 3 x 2 mm / 0.20 x 0.12 x 0.08 inch |
Weight |
1 g / 0.04 oz |
Information source |
- - Manufacturers Literature RICOH
|
RH5RL25: RICOH
Günther Stabe † 19.8.20
|
RH5RL25: TTT Steidle 1981
Günther Stabe † 19.8.20
|
|
RH5RL25: RICOH
Günther Stabe † 19.8.20
|
