S202S12

Information - Help
ID = 62562

Country:
Japan
Brand: Common type Japan tube/semicond.
Tube type:  IC - Integrated Circuit   Power-supply
Identical to S202S12
Base Wires
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Kond., __ Dioden);
Form/Case: ~ TO-247, 4 Pins (S202S12 / S202S12F);
Type: SIP Type SSR with Snubber Circuit and Mouning Capability for External Heat Sink;
Data: IF: 20 mA; VF: 1.2 V; VR: <6 V; IT: <8A rms; Iop: <50 mA; Vdrm: <600 V; Vout: <250 V; Ptot: __ W; t op: -20...+80 °C.
Family: S102S11 / S202S11 / S102S12 / S202S12;
Manufactured by Sharp Electronics (J) -


Dimensions (WHD)
incl. pins / tip		 18 x 20 x 5 mm / 0.71 x 0.79 x 0.20 inch
Weight 6 g / 0.21 oz
Information source - - Manufacturers Literature   Sharp

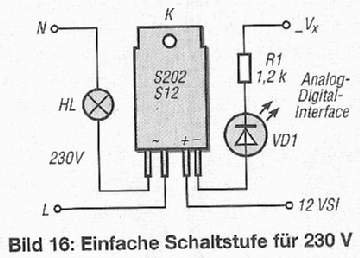

S202S12: unbek.
Egon Strampe
s202s12_s.png S202S12: Sharp
Günther Stabe † 19.8.20
S202S12: Sharp
Günther Stabe † 19.8.20
