SG3525A

Information - Help
ID = 53167

Country:
United States of America (USA)
Brand: Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Tube type:  IC - Integrated Circuit
Identical to SG3525A
Similar Tubes
Other characteristic (electr. data):
  SG3527

Base Wires
Description

Aufbau/internal: IC (__ Trans., __ Widerst., __ Dioden, __ Kond.);
Form/Case/Outline: DIP-16 (SG3525AN) | SOP-16 (SG3525ADW);
Type/Application: Pulse Width Modulator Control Circuit (PMW);
Daten/electr.data: Vcc: 8...35 V, f o: 100...400'000 Hz; Pd: 1 W; t op: <150 °C;
-


Dimensions (WHD)
incl. pins / tip
20 x 7 x 8 mm / 0.79 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

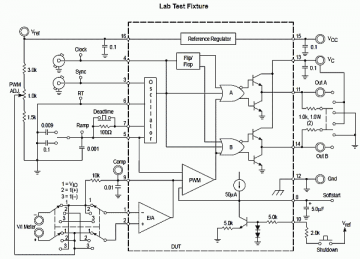

SG3525A
Günther Stabe † 19.8.20

dip16_sot38_185.gif SG3525A
Günther Stabe † 19.8.20

SG3525A: Motorola
Günther Stabe † 19.8.20

More ...
