STP9NC60

Information - Help
ID = 45995

Country:
France
Brand: Thomson (marque), Thomson-Houston (CFTH); Paris
Tube type:  Transistor   Power-supply
Identical to STP9NC60

Base Wires
Description

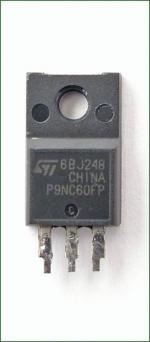

Silicon N-channel Power Mesh Overlay° MOS-FET, 600 V, 9 A, 0.6 Ohm, 125 W (STP9NC60FP - Iso220: 40 W).
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
10 x 15 x 5 mm / 0.39 x 0.59 x 0.20 inch
Weight 2 g / 0.07 oz
Information source - - Manufacturers Literature   ST Microelectronics (SGS-Thomson)

STP9NC60: ST Microelectronics
Günther Stabe † 19.8.20

to220_ttt_36.gif STP9NC60: TTT Steidle 1981
Günther Stabe † 19.8.20

STP9NC60: ST Microelectronics (SGS-Thomson)
Günther Stabe † 19.8.20
