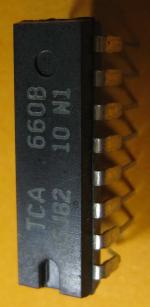

TCA660
|
Country:
Germany
|
|
| Identical to |
TCA660
|
| Similar
Tubes |
Normally replaceable-slightly different:
MCA660
|
| First Source
(s) |
Mar.1979 : - - Manufacturers Literature Datasheet
|
| Base |
SPECIAL TUBEBASE in general
|
| Description |
Aufbau/Content: IC (68 Trans., 90 Widerst., 8 Dioden);
Form/Case/Outline: DIP-16;
Application/Type: HELLIGKEITS-, KONTRAST- und SÄTTIGUNGS-EINSTELLKOMBINATION
für PAL- und PAL-/SECAM-Farbfernsehempfänger:
Helligkeits- und Kontrast-Einstellung für das Leuchtdichtesignal, Schwarzwert-Klemmung, Leuchtdichtesignal-Austastung und/oder Eintastung eines konstanten Niveaus
Verstärker für (R-Y)- und (B-Y)-Signal mit Kontrast- und Sättigungs- Einstellung, (G-Y)-Verstärker, niederohmiger Eingang für Y-Verzögerungsleitung;
Daten/electr.data: Up: 12 V; Ip: 35 mA; Ptot: 600 mW; t amb.: -25...+65 °C; -
|
Dimensions (WHD)
incl. pins / tip |
22 x 7 x 8 mm / 0.87 x 0.28 x 0.31 inch |
| Weight |
1 g / 0.04 oz |
| Information source |
- - Manufacturers Literature Valvo
|
TCA660: Valvo
Günther Stabe † 19.8.20
|
TCA660: TTT Steidle 1981
Günther Stabe † 19.8.20
|
|
TCA660: Valvo
Thomas Günzel † 1.8.22
