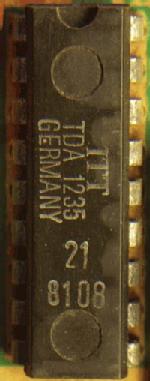

TDA1235
Country:
Germany
|
|
Identical to |
TDA1235
|
Similar
Tubes |
Normally replaceable-slightly different:
TDA1236
|
Base |
Wires
|
Description |
Aufbau/Content: IC (__ Trans., __ Widerst., __ Dioden, __ Kond.);
Form/Case/Outline: DIP-18;
Applikation/Type: Sound Channel for TV Reiceivers, volume / bass / treble control, output (driver) for separate Power Amplifier;
Daten/electr.data: Vcc: 12 V; Icc: __ mA; Ptot: __ mW; tmax j: 150 °C.
-
|
Dimensions (WHD) incl. pins / tip |
23 x 7 x 8 mm / 0.91 x 0.28 x 0.31 inch |
Weight |
1 g / 0.04 oz |
|
TDA1235: TTT Steidle 1981
Günther Stabe † 19.8.20
|
|
|
Collection of
|
|
|
|
