TDA2320

Information - Help
ID = 45806

Country:
France
Brand: Thomson (marque), Thomson-Houston (CFTH); Paris
Tube type:  IC - Integrated Circuit
Identical to TDA2320
Base SPECIAL TUBEBASE in general
Description

SGS-Thomson (ST), Preamplifier for infrared remote control system, 8 pin DIP.


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 10 x 7 x 8 mm / 0.39 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source -- Original-techn. papers.   ST

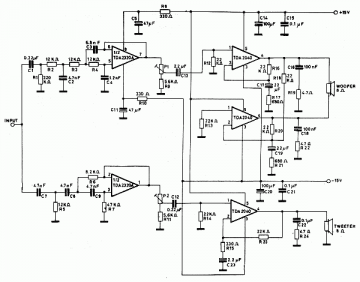

TDA2320: SGS: Zweiwege-HiFi-System mit aktiven Filtern
Günther Stabe † 19.8.20
tda2320_s.gif TDA2320: ST SGS-Thomson
Günther Stabe † 19.8.20
TDA2320: ST-Microelectronics
Thomas Günzel † 1.8.22
More ...
Usage in Models 1= 1980?? ; 1= 1982?? ; 2= 1983 ; 1= 1985 ; 1= 1986?? ; 1= 1989 ; 1= 1998?
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):8
