TDA2616

Information - Help
ID = 50492

Country:
Netherlands
Brand: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  IC - Integrated Circuit   Power/Output
Identical to TDA2616

Base Wires
Description

Aufbau/internal: IC (__ Trans., __ Widerst., __ Dioden);
Form/Case/Outline: SIP-9 / SOT-131 (TDA2616) | SIL-9 bent to DIL-9 / SOT-157 (TDA2616Q);
Type/Application: 2 x 12 W @ 4 Ω HiFi Audio Amplifier with Mute;
Daten/electr.data: Vp: +/- 7.5 ... 21 V; Iccq: 40 mA; Iosm: <4 A; Ptot: 25 W, t amb: -25...+150 °C ;
-


Dimensions (WHD)
incl. pins / tip
24 x 12 x 5 mm / 0.94 x 0.47 x 0.20 inch
Weight 3 g / 0.11 oz
Information source - - Manufacturers Literature   Philips

TDA2616
Günther Stabe † 19.8.20
    More ...

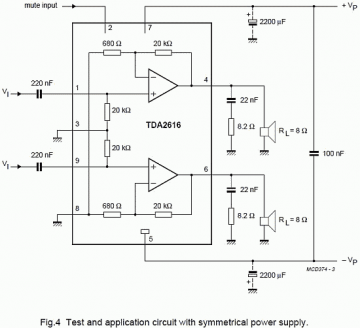

tda2616_sil9.png TDA2616
Günther Stabe † 19.8.20

More ...
TDA2616: Philips
Günther Stabe † 19.8.20

Collection of



TDA2616
