TIP34

Information - Help
ID = 36099

Country:
United States of America (USA)
Brand: Texas Instruments, Dallas
Tube type:  Transistor   Power/Output
Identical to TIP34
First Source (s)
Mar.1974 : -- Collector info (Sammler)

Base Wires
Description PNP silicon planar power transistor intended as AF amplifier.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
15 x 19 x 5 mm / 0.59 x 0.75 x 0.20 inch
Weight 1 g / 0.04 oz
Information source - - -
-- Collector info (Sammler)   KTT 1969/70
- - -
- - -

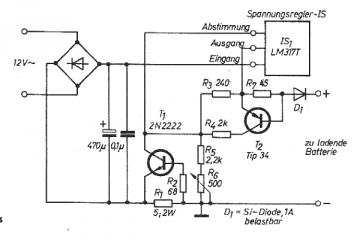

TIP34: radio fernsehen elektronik 3/83
Egon Strampe

to3_pl_1.gif TIP34: TTT Steidle 1981
Günther Stabe † 19.8.20

TIP34: Texas Instruments
Thomas Günzel † 1.8.22

More ...
Usage in Models 2= 1970??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):2

Collection of



TIP34
