TZ40

Information - Help
ID = 16493

Country:
United States of America (USA)
Brand: Taylor Tubes Inc.; Chicago (IL)
Tube type:  Transmitting Triode, air cooled   Power/Output
Identical to TZ40
Similar Tubes
Normally replaceable-slightly different:
  CV1076 ; DA41 ; VT76_GB
Predecessor Tubes T40

Base UX-Base (4 Pins (2 thick, USA 1924, UX) (Codex=Br) Top contact with a cap.
Was used by Transmittertube (Radio)
Filament Vf 7.5 Volts / If 3 Ampere / Direct / Specified voltage AND current AC/DC
Description

Zero grid bias version of T40.
40 W plate dissipation, gain 62.


Information source Tube Lore (II)   p. 160
- - Manufacturers Literature
Taschenbuch zum Röhren-Codex 1948/49

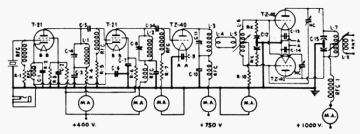

TZ40: QST 1940
Achim Dassow

tz40_so.png TZ40: ARRL Handbook 1972
Anonymous 10 Collector


Just Qvigstad
TZ40: P.G.
Peter Gruschka

More ...
