UDA1330

Information - Help
ID = 81179

Country:
Netherlands
Brand: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  IC - Integrated Circuit   Audio Frequency
Identical to UDA1330
Base Wires
Description

Aufbau/Content: IC (LSI);
Form/Case/Outline: SSOP-16 (UDA1330ATS);
Type/Application: Low-Cost Stereo Filter DAC;
Daten/electr.data: Vdd: 2.7 ... 5.5 V; Idd: <15 mA; Pd: 75 mW; t op: -40...+85 °C;
-


Dimensions (WHD)
incl. pins / tip		 5 x 1 x 5 mm / 0.20 x 0.04 x 0.20 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

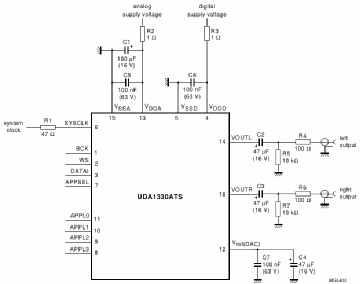

UDA1330: Philips
Günther Stabe † 19.8.20
uda1330_s.png UDA1330: Philips
Günther Stabe † 19.8.20
UDA1330: Philips
Günther Stabe † 19.8.20
Usage in Models 1= 2007??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1

Collection of

Michael Mischke (D)
