WM8726

Information - Help
ID = 69211

Country:
Great Britain (UK)
Brand: Common type Great Britain tube/semicond.
Tube type:  IC - Integrated Circuit   Audio Frequency
Identical to WM8726
Similar Tubes
Differences not known by us:
  WM8725

Base Wires
Description

Aufbau/Content: IC (CMOS);
Form/Case/Outline: SOP-14 (WM8726GED);
Type/Application: 24-bit 192 kHz Stereo DAC;
Daten/electr.data: Vcc: 2.7 ... 5.5 V; Icc: 23 mA (@ 3.3 V); Pd: __ mW; t op: -25...+85 °C;
Pin compatible with WM8725;
Manufactured by WM - Wolfson Microelectronics Co., Ltd., Edinburgh (Scotland / UK)
-


Dimensions (WHD)
incl. pins / tip
9 x 2 x 4 mm / 0.35 x 0.08 x 0.16 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

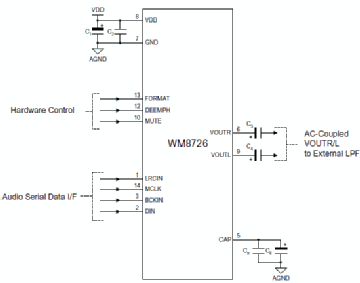

WM8726: WM
Günther Stabe † 19.8.20

wm8726_s.png WM8726: WM
Günther Stabe † 19.8.20

WM8726: WM
Günther Stabe † 19.8.20
