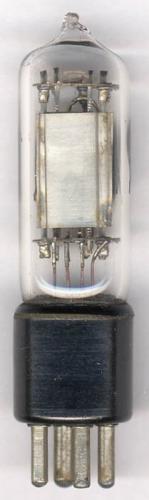

XH1.5
|
Country:
Great Britain (UK)
|
|
| Identical to |
XH1.5
|
| Base |
Midget 4 pin Hivac (Sm4)
|
| Was used by |
Radio/TV-reception etc. |
| Filament |
Vf 1.5 Volts / If 0.66 Ampere / Direct / Battery = |
| Description |
Sm4 Base (One large pin)
Typical:- Va 50V; Ia 0.45mA; Vg 0V; Ra 50k; gm 0.5mA/V.
|
Dimensions (WHD)
incl. pins / tip |
16 x 64 x mm / 0.63 x 2.52 x inch |
| Weight |
13 g / 0.46 oz |
| Information source |
- - Manufacturers Literature Ratheiser, Röhrenhandbuch, 1948
|
|
XH1.5: Fin Stewart
Fin Stewart
|
Just Qvigstad
|
|
