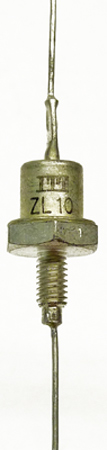

ZL10

Information - Help
ID = 46328

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Solid-State-Diode   Power-supply
Identical to ZL10
Similar Tubes
Normally replaceable-slightly different:
  BZY17
Other class quality (otherwise equal):
  ZX10

Base Wires
Description Silicon reference regulator diode 10 V 12.5 W.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
8 x 20 x mm / 0.31 x 0.79 x inch
Weight 4 g / 0.14 oz
Information source - - -
- - -   KTT 1969/70, ITT Datenblatt
- - -
- - -

ZL10: ITT Schaltbeispiele 1967
Günther Stabe † 19.8.20

do4_24.gif ZL10: DVT 1971 ECA
Günther Stabe † 19.8.20

ZL10: ITT_Dioden_1971_72
Thomas Günzel † 1.8.22

More ...
Usage in Models 1= 1965

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1

Collection of



ZL10
