aeg: AW2 ; Magnetophon

Hello,

I have the same recorder, but it has another model nr. on its plate. The model nr. is: AWE1132.

Also the schematic seems different.

Anybody knows the difference between the two models? Or have the correct schematic for my own?

Thank You.

To thank the Author because you find the post helpful or well done.

Dear Alessandro,

if you could upload a picture to show the recorder and the model plate chances are better that someone can help you.

Kind regards
Mark

To thank the Author because you find the post helpful or well done.

Dear All,

the AWE1132 is just the electronics, inside the AW2.

The AW2 works coupled to the external amplifier KL15D.

Using modern tapes, it's possible to reach surprising frequency response just adjusting the bias value.

My AW2 is now well working coupled to an external push-pull amplifier. The amplifier, as foreseen, provides to supply the recording signal.

Thank You

Alessandro Filippig

Attachments:

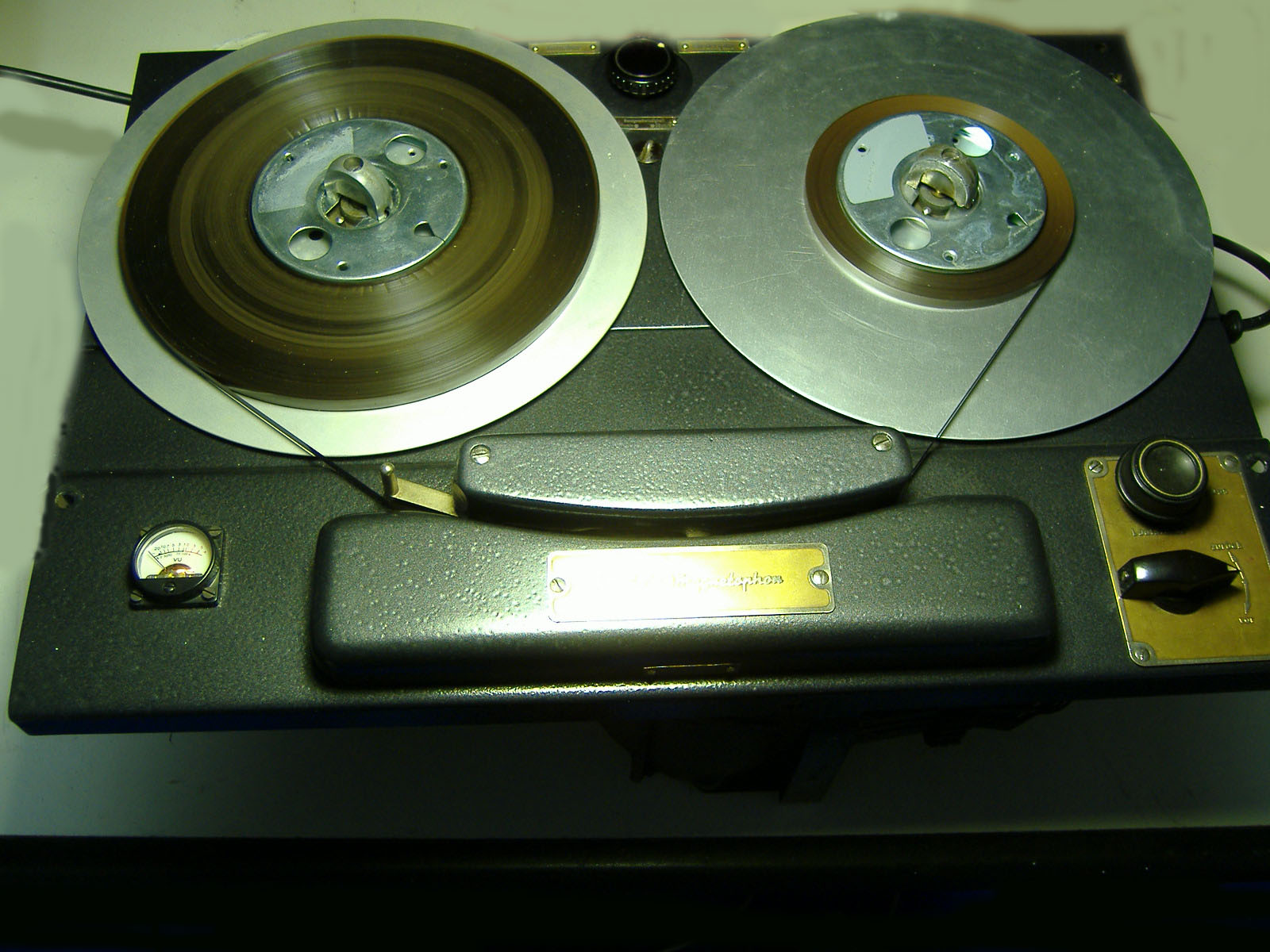

• DSCF0241 (293 KB)
• DSCF0227 (214 KB)
• DSCF0227 (222 KB)

To thank the Author because you find the post helpful or well done.

Dear All,

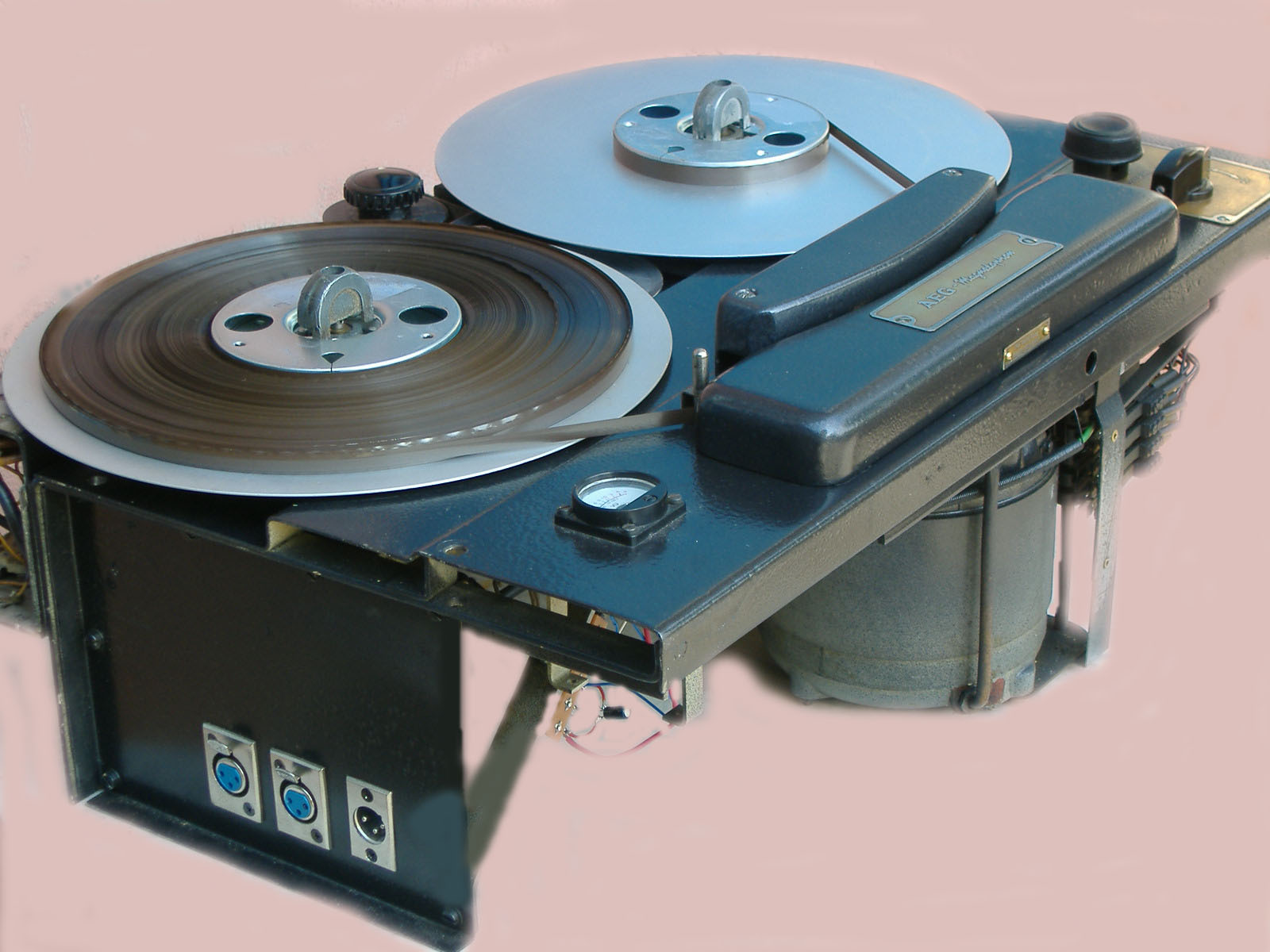

I attach two images of my recording unit developed on an AEG Magnetophon AW2 after a recording session.

All the best

Alessandro Filippig

Attachments:

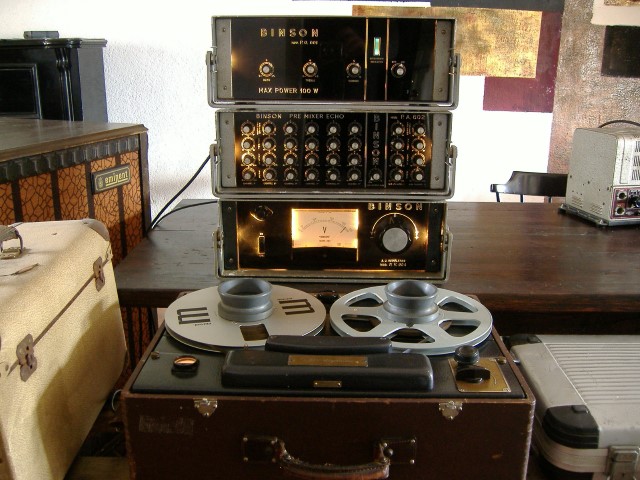

• Alessandro Filippig's Recording Station (Small) (106 KB)
• AEG Magnetophon AW2 improved by Alessandro Filippig (95 KB)
