Maybe the P2 page contains some mistakes?

Hi all,

According the Google search, the P2 is a vacuum triode. Filament is 2V 0.2A.

I'm not sure about the base, maybe there is UY base version, but I saw only europa 4 pin base version.

I just bought one, it also has europa 4 pin base, and works well with the above filament setting.

I'm I right?

Where to upload it's pictures?

Otto

• 1.1 (197 KB)
• 2.1 (196 KB)

To thank the Author because you find the post helpful or well done.

Hi Otto,

there are various versions of a type P2 tube from different makers.

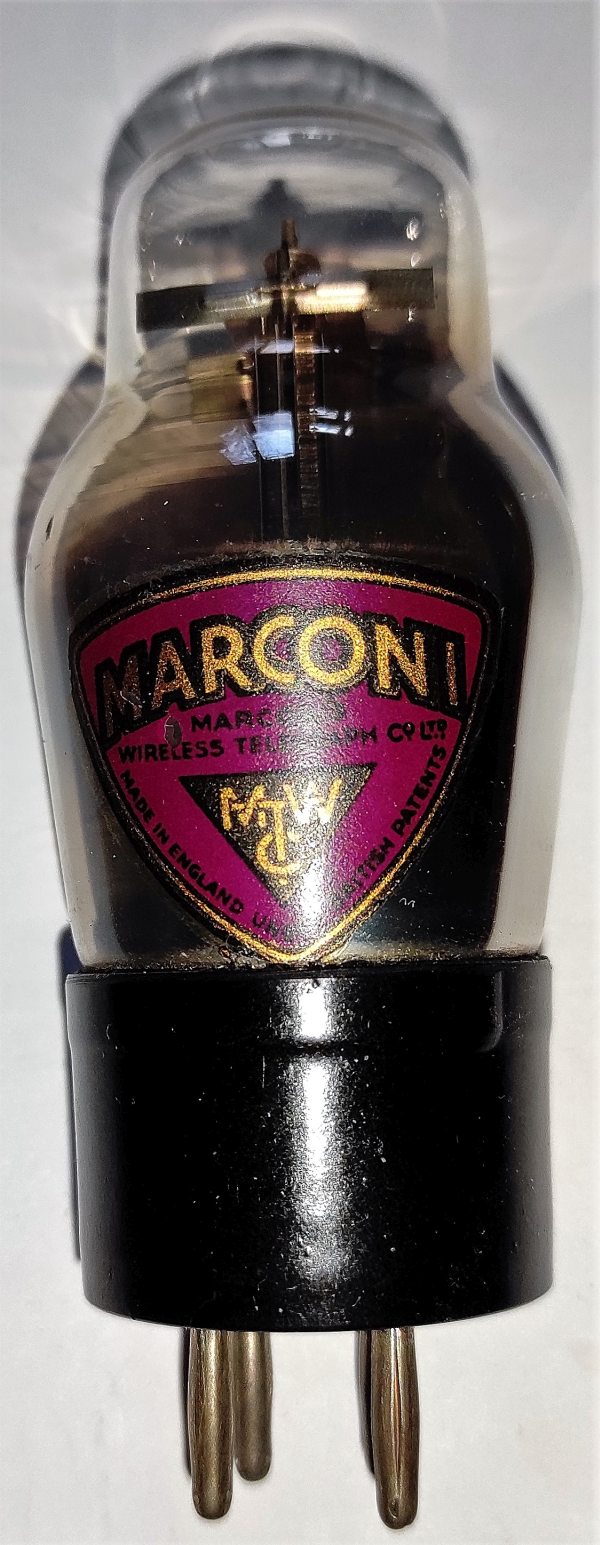

Your picture clearly shows a Marconi version, hence it belongs to the page P2_Marconi-Osram .

Best Regards,
Jacob

To thank the Author because you find the post helpful or well done.

Hi Jacob,

Thank You.

The shape is like tube_p2_commontype.html

Which one is the right place?

Best regards,

Otto

To thank the Author because you find the post helpful or well done.

Hi Otto,

Since the brand is clearly visible, your pictures should uploaded to the page P2_Marconi-Osram .

The page P2_Commontype is rather intended for tubes without a visible manufacturer's brand.

Best Regards,
Jacob

To thank the Author because you find the post helpful or well done.

The tube labelled MARCONI, ČS.VYROBEK, P2 seems to be a licensed production of the P2 tube in Czechoslovakia, I uploaded two pictures on the tube page P2 common type

To thank the Author because you find the post helpful or well done.

A tube type P2, which is supposedly equivalent to type 47, does most probably not exist, see under PZ.
