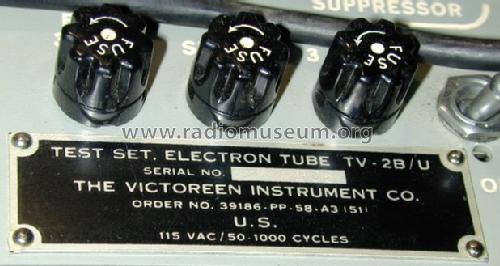

Tube Tester TV-2 B/U
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1961 ?
- Category
- Military Equipment (not Re, Tr or RXT)
- Radiomuseum.org ID
- 69048
aus ebay, #155029469694, Verkäufer otsonline
aus ebay, #155029469694, Verkäufer otsonline
aus ebay, #155029469694, Verkäufer otsonline
aus ebay, #155029469694, Verkäufer otsonline
aus ebay, #155029469694, Verkäufer otsonline
Verkauftes Gerät
Verkauftes Gerät
Aus Prospekt
aus ebay, mit Erlaubnis des Verkäufers mono
- Number of Tubes
- 2
- Power type and voltage
- Alternating Current supply (AC) / 100 -125 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Tube Tester TV-2 B/U - MILITARY U.S. different makers
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 450 x 210 x 380 mm / 17.7 x 8.3 x 15 inch
- Notes
-
Tube tester with 6 Instruments: Manufacturers include J.H. Keeney Co. Inc. and Victoreen Instrument Co. for US Army. Case waterproof to six meter depth. Order No.20411-PC-61-A3 (51). See also: TM-11-6625-316-12, Headquarters-Department of the Army.
- External source of data
- Volker Jeschkeit
- Literature/Schematics (1)
- TM-11-6625-316-12, March 1961
