• Country
• United States of America (USA)

• Manufacturer / Brand
• A-C Dayton Co., A-C Electrical; Dayton (OH)

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 31124

• • alternative name: AC Dayton

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 6/22/90/135/-6 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

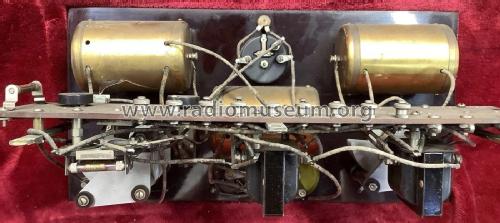

• Model: XL30 [Table] - A-C Dayton Co., A-C Electrical

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 24.75 x 12.5 x 12.75 inch / 629 x 318 x 324 mm

• Notes
• Two dials (primary tuning control knobs)

• Price in first year of sale
• 135.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Radio Manufacturers of the 1920s, Vol 1

• Other Models

• Here you find 47 models, 27 with images and 32 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
