XL-10 Showcase Model Glass enclosure
A-C Dayton Co., A-C Electrical; Dayton (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- A-C Dayton Co., A-C Electrical; Dayton (OH)
- Year
- 1925
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 198092
-
- alternative name: AC Dayton
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 6 & 22 & 90 & -6 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Special material, described in the notes.
- from Radiomuseum.org

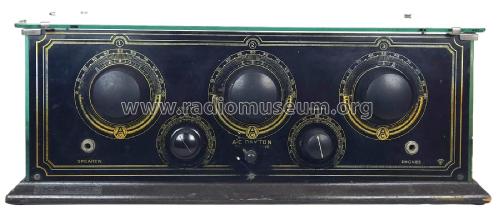

- Model: XL-10 Showcase Model [Glass enclosure] - A-C Dayton Co., A-C Electrical
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 23 x 10 x 9 inch / 584 x 254 x 229 mm
- Notes
- The A-C Dayton XL-10 was normally produced having a wooden cabinet but a few sets were produced featuring a special French plate glass cabinet. Showcase Manufacturer: Columbus Show Case Company, Columbus, Ohio.
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
