Meiduo 美多 563-A
Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176184
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

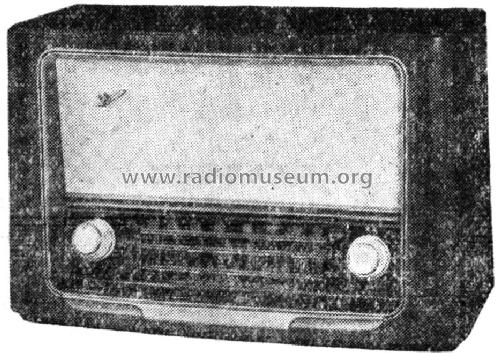

- Model: Meiduo 美多 563-A - Shanghai 上海无线电厂 Shanghai
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 610 x 385 x 270 mm / 24 x 15.2 x 10.6 inch
- Notes
- Same tube line up as model 562-A. The model Meiduo 美多 563-A has broadcast 550 - 1600 kHz (187 - 545 m), SW 3.6 - 8 MHz (37.5 - 83.3 m) and 8 - 18 MHz (16.7 - 37.5 m). Meiduo 563-A and 573 share the same documentation but the cabinet is different (with the same size).
- Mentioned in
- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 138.)
- Literature/Schematics (1)

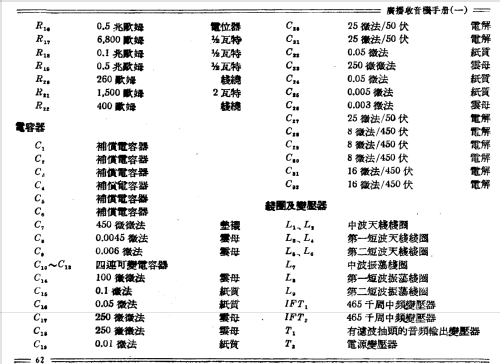

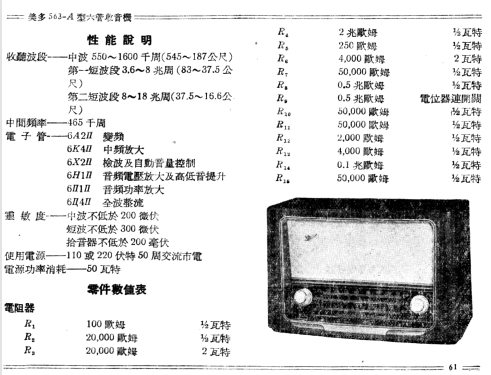

- 09-Broadcast Radio Manual, July 1958-1-1 STPH (page 60.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
