Xinshidai 新时代 101-A (552-6甲, 乙, 丙)

Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)

Data
Forum
Pictures
Collections

  • Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176181

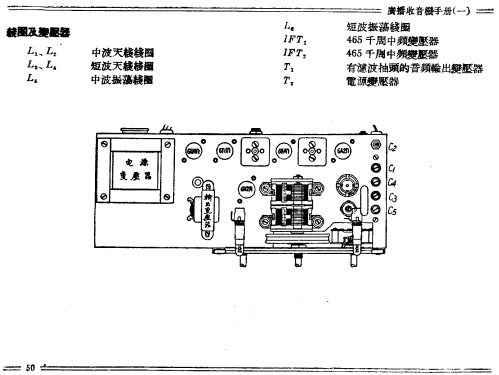

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Xinshidai 新时代 101-A - Shanghai 上海无线电厂 Shanghai
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • The 3 models Gongli 公利 552-6甲, (552-6A) 552-6乙 (552-6B) and 552-6丙 (552-6C) share each the same schematic with Xinshidai 新时代 101-A. Reception is broadcast 550 - 1600 kHz (187 - 545 m) and SW 3.9 - 12.1 MHz (24.8 - 76.9 m). Xinshidai = "New Aera" or "New Age". Please compare Gongli 552-6 with the equivalent Xinshidai 101-A before you upload pictures and check the other families below.
    <
    The same applies for the following similar families: 552-7 for 101, 103 and 104 and model 552-8 shows the same documentation as 105, 106, 107, 108 and 109. See also 552-7A for 102. There are also 552 and 552-3, 552-4 and 552-5 for this schematic manual 1958/59. We presume that one of the brands is for export, but don't know yet which one.
