• Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176187

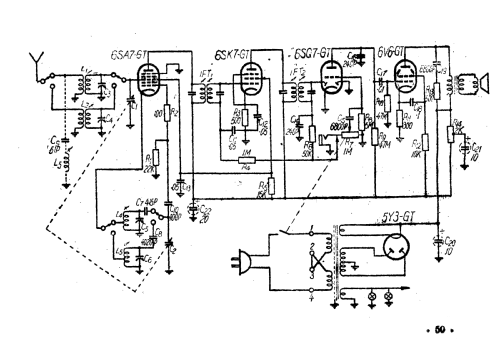

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

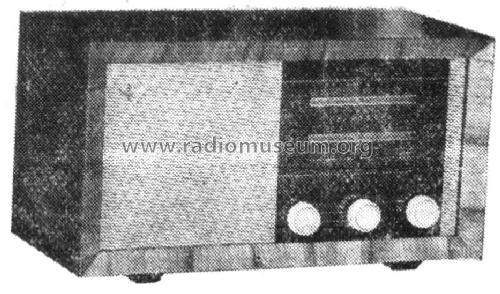

  • Model: Shanghai 上海 156-A [straight edges] - Shanghai 上海无线电厂 Shanghai
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Same tube line up as model 155-A. Model Shanghai 156-A can also have a Russian rectifier tube. Exists with cabinet with straight edges and round edges. Shares the same schematic and documentation as models Shanghai 156-B, 156-C and 156-D with different cabinets.

    The one schematic manual lists the model Shanghai 156_ABCD under the manufacturer Shanghai Broadcast Equipment Factory and the other under Shanghai Wireless Factory.
