• Country
• Brazil

• Manufacturer / Brand
• ABC - Rádio e Televisão do Nordeste S/A

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191834

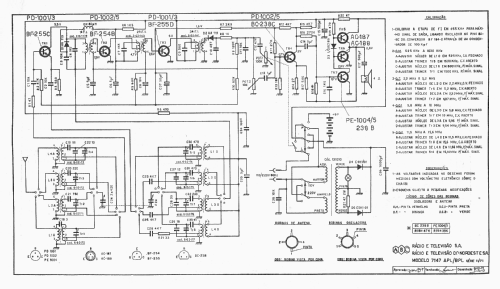

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 115; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Transbrasil PIII 7147-APL - ABC - Rádio e Televisão do

• Shape
• Tablemodel, with any shape - general.

• Author
• Model page created by Meyer Rochwerger. See "Data change" for further contributors.

• Other Models

• Here you find 14 models, 8 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from ABC - Rádio e Televisão do Nordeste S/A
