• Country
• Belgium

• Manufacturer / Brand
• ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106215

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 130; 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

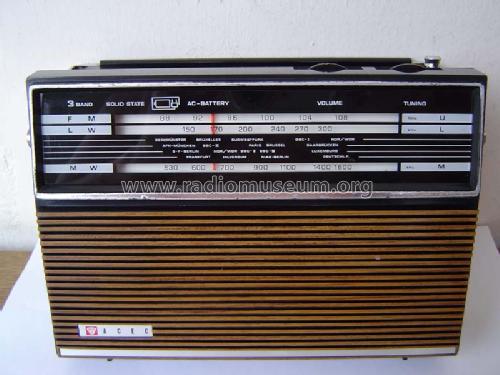

• Model: 5198 - ACEC, Ateliers de

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 140 x 55 mm / 7.9 x 5.5 x 2.2 inch

• Notes
• Same model as Hitachi KH-1015L.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Ervé Leclercq. See "Data change" for further contributors.
