• Country
• Belgium

• Manufacturer / Brand
• ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 190261

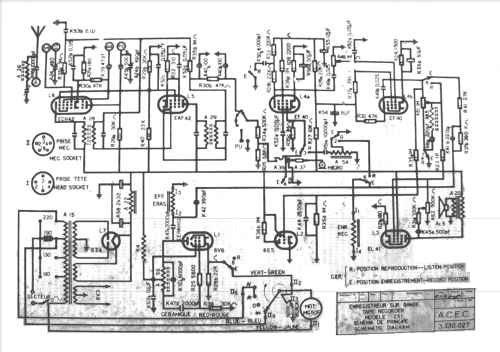

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECH42 EAF42 EF40 EF40 6E5 EL41 6V6 5Z4

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 190; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiofilm 251 - ACEC, Ateliers de

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 540 x 370 x 350 mm / 21.3 x 14.6 x 13.8 inch

• Notes

• The 6V6 tube is used as oscillator to drive the eraser head (recorder).

• Net weight (2.2 lb = 1 kg)
• 22.8 kg / 50 lb 3.5 oz (50.22 lb)

• Literature/Schematics (2)
• Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 95)

• Author
• Model page created by Georges Werts. See "Data change" for further contributors.

• Other Models

• Here you find 256 models, 252 with images and 42 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
