• Country
• Argentina

• Manufacturer / Brand
• ACHE Electrónica S.A.I.C., Buenos Aires

• Year
• 1966

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 267978

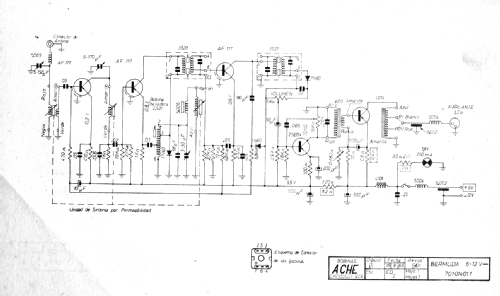

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

• Number of Transistors

• Semiconductors
• AF117 AF117 AF117 2SB54 unknown_tr

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 7 AM circuit(s)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Bermuda 701-014-011 - ACHE Electrónica S.A.I.C.,

• Mentioned in
• RA: Manual de C. de Radio con T. Héctor A. Algarra (h.)

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
