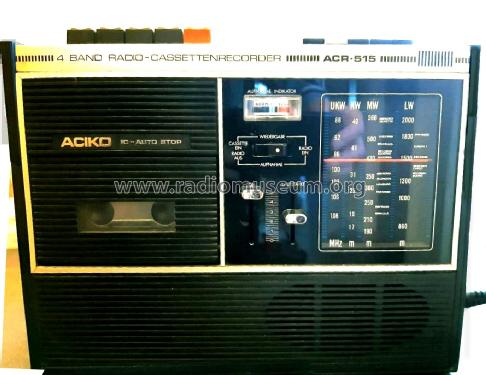

4 Band Radio-Cassettenrecorder ACR-515

• Country
• Japan

• Manufacturer / Brand
• Aciko (brand)

• Year
• 1976 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201365

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands

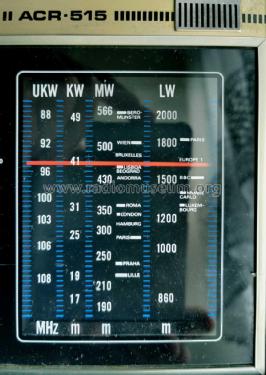

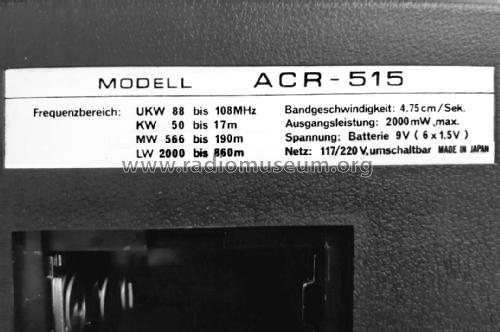

• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

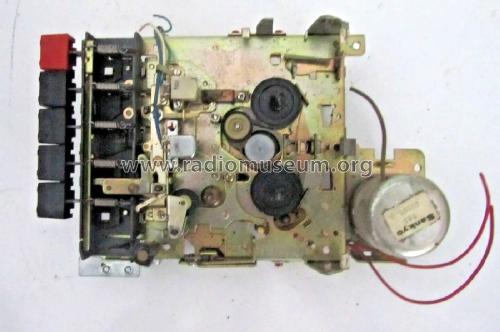

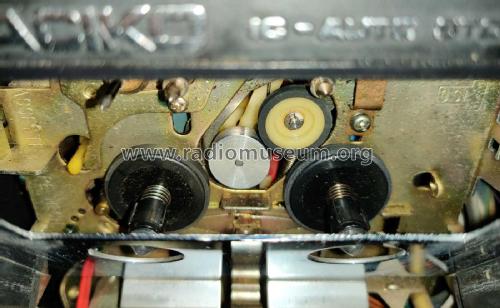

• Cassette-Recorder or -Player

• Power type and voltage

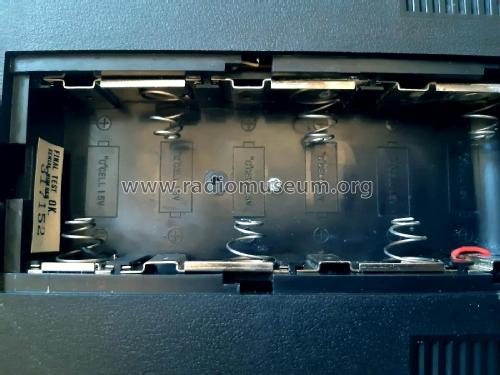

• Line / Batteries (any type) / 117; 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 4 Band Radio-Cassettenrecorder ACR-515 - Aciko brand

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 298 x 225 x 75 mm / 11.7 x 8.9 x 3 inch

• Notes

• ACR 415 is a similar device, the difference is the built-in microphone in the newer type.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
