Acoustic Suspension Loudspeaker System AR-2ax
Acoustic Research Inc.; Cambridge, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Acoustic Research Inc.; Cambridge, MA
- Year
- 1970 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 330445

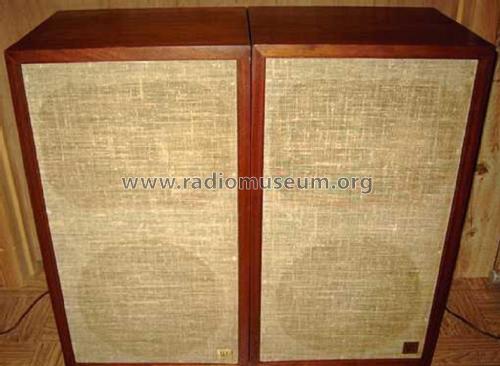

Acoustic Research AR-2ax speakers
Acoustic Research AR-2ax speaker opened
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Acoustic Suspension Loudspeaker System AR-2ax - Acoustic Research Inc.;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 13.5 x 24 x 11.5 inch / 343 x 610 x 292 mm
- Notes
-

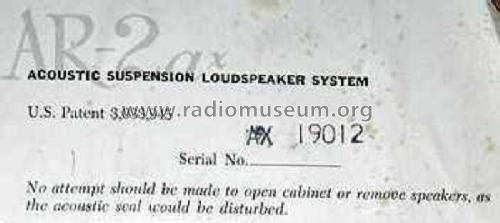

Acoustic Research held a patent on acoustic suspension speaker systems (US 3,033,945). AR tried to produce a speaker sysem with the greatest accuracy possible.
According to the review in 9-1970 High Fidelity, it is a three -way reproducer containing a 10-inch acoustic suspension woofer, a 3.5-inch midrange unit, and a 1.375-inch hemispherical dome tweeter.
- Net weight (2.2 lb = 1 kg)
- 36.5 lb (36 lb 8 oz) / 16.571 kg
- Price in first year of sale
- 128.00 USD
- Mentioned in
- September 1970 issue of High Fidelity magazine
- Author
- Model page created by Rich Post. See "Data change" for further contributors.
