The AR Turntable

Acoustic Research Inc.; Cambridge, MA

Data
Forum
Pictures
Collections

  • Year
  • 1984 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 261269

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60Hz 110-120 / 50Hz 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: The AR Turntable - Acoustic Research Inc.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 462 x 179 x 387 mm / 18.2 x 7 x 15.2 inch
  • Notes

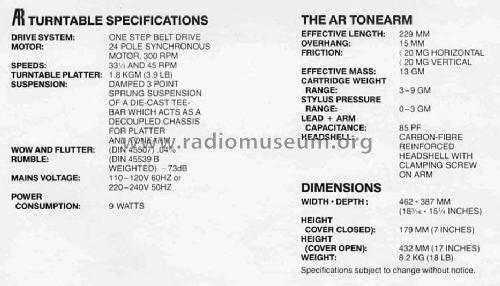

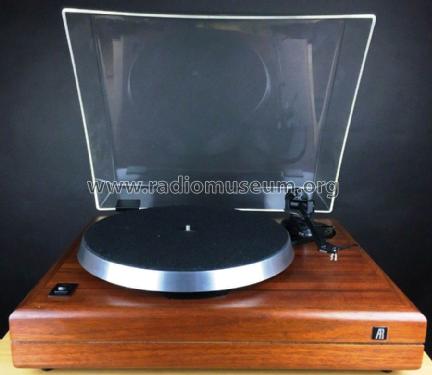

  • The AR Turntable  2-Speed (33⅓ & 45 rpm) Belt Driven Stereo Turntable.
    Platter 1,8kg
    Suspension: damped 3-point sprung suspension
    Wow and flutter: 0.04%, Rumble: -73dB
    Dust Cover
    Power Consumption 9 Watts.
    Note:
    The AR Turntable is similar to the AR ES-1 model and is available with or without a tonearm
    (£165,- motor unit only / £225,- with fitted AR tonearm)

  • Net weight (2.2 lb = 1 kg)
  • 8.2 kg / 18 lb 1 oz (18.062 lb)
  • Mentioned in
  • - - Manufacturers Literature (The AR Turntable Installation Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
