Quad CD Player 67 CD

Quad (Brand); Acoustical Manufacturing Co. Ltd.; Huntingdon

Data
Forum
Pictures
Collections

  • Year
  • 1993 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 317582

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Quad CD Player 67 CD - Quad Brand; Acoustical
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 321 x 80 x 240 mm / 12.6 x 3.1 x 9.4 inch
  • Notes

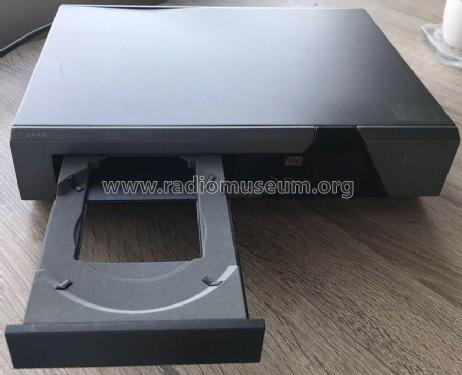

  • A stereo hi-fi compact disc player with remote control. RCA phono sockets for Line Output and Digital Output.

    Specification
    Operation:                       Full function by infrared remote control or simple direct to play operation without remote control.
    Remote control Interface: RC-5 system.
    Number of channels: 2
    Frequency response: < ± 0.1 dB 20 - 20,000 Hz.
    Phase linearity: < ± 0.5° 20 - 20,000 Hz.
    Signal/noise ratio:  > 100 dB 20 - 20,000 Hz.
    Crosstalk > 100 dB at 1kHz
    Total harmonic distortion: < 0.002% at 1kHz
    Wow and flutter: Below measurement levels.
    D/A conversion: 18 bit 64 x oversampling. Delta-Sigma converter.
    Error correction system: Cross interleaved Reed Solomon Code (CIRC).
    Optical readout system: Laser semi-conductor AlGaAs wavelength 800 nm.
    Sampling frequency: 44.1 kHz.
    Audio Output: 2 V rms max. 300 mV on normal programme material.   Minimum load impedance 10 kΩ
    Digital output: For digital signal processors.

    Voltage Requirements
    110-120, 220-240V AC 50/60 Hz. (changed by links on PCB)

    Power consumption:         14W approx.

  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Mentioned in
  • Gramophone magazine May 1993 Quad 67 review
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Quad 67 Compact Disc Player Service Manual)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
