• Country
• Canada

• Manufacturer / Brand
• Addison Industries, Ltd.;Toronto

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93023

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

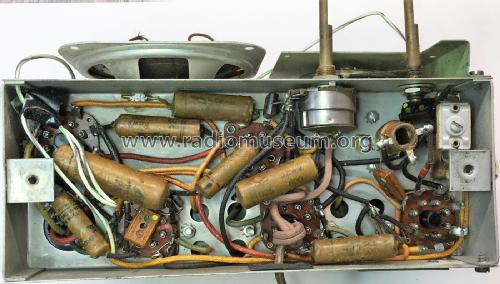

• Model: 2B Ch= R5A1 - Addison Industries, Ltd.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.3 x 6 x 5 inch / 262 x 152 x 127 mm

• Notes

• Green plastic cabinet with ivory colour trim. Both Catalin or Plaskon material and other colours possible.This model uses an electromagnetic-dynamic speaker (field coil).

  Please only photos of clearly identified model (visibly printed or stamped).
  otherwise to Generic model.

• Price in first year of sale
• 37.95 $

• Source of data
• -- Original prospect or advert

• Circuit diagram reference
• Radio College of Canada

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
