- Country
- Canada
- Manufacturer / Brand
- Addison Industries, Ltd.;Toronto
- Year
- 1948 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 134283
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.

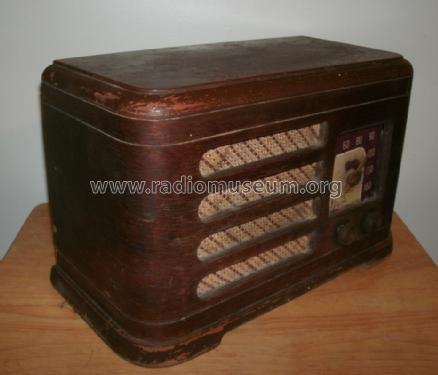

- Material
- Wooden case
- from Radiomuseum.org
- Model: 51 - Addison Industries, Ltd.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- This model is older than 1953 because it has the "MOT Warning" (Receiving Set License) which was discontinued in 1953 - it is similar orequal chassis R5A1. It has been sold showing the wood but got often overpainted by private persons. Who knows more or has a schematic?
- External source of data
- Doug MacKinnon, VE3GJ
- Mentioned in
- Table Top Radios Vol. 1 Stein 98 (page 29.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
