• Country
• Canada

• Manufacturer / Brand
• Addison Industries, Ltd.;Toronto

• Year
• 1943

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 192663

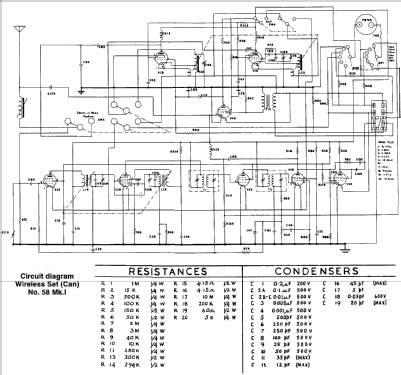

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 1T4 1R5 1T4 1S5 1S5 1S5 1299A 1299A

• Main principle
• Transceiver; ZF/IF 456 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit. / 130-180 & 65-90 & 1.1-1.5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

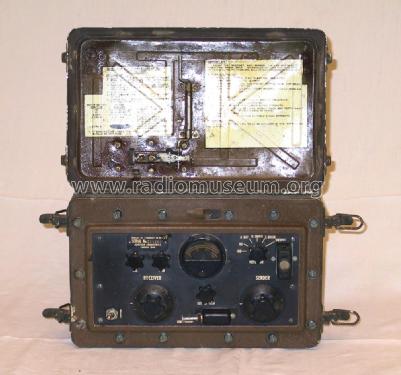

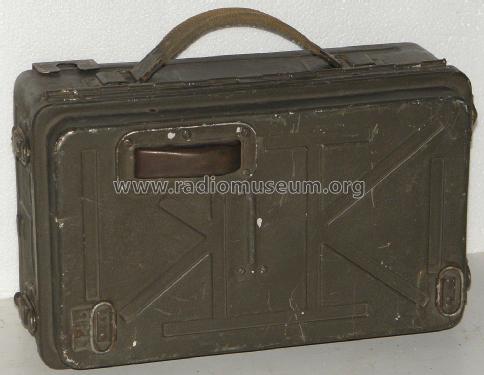

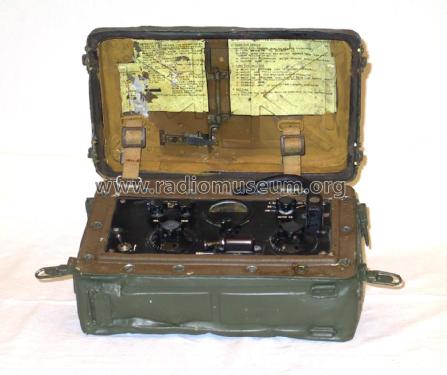

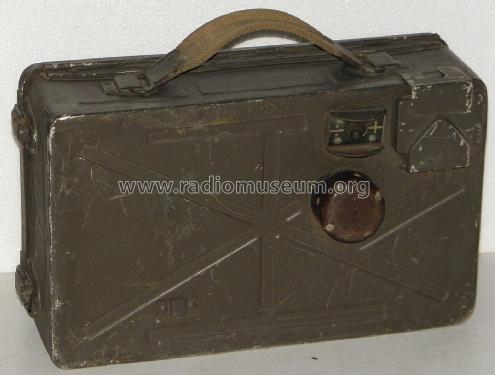

• Model: Wireless Set No.58 58 MK.I*/T [Mk I, Canadian] - Addison Industries, Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 150 x 200 mm / 13.8 x 5.9 x 7.9 inch

• Notes

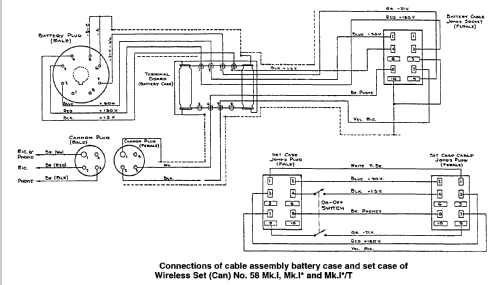

• Wireless set No.58 (Canadian) Mk I: short range infantry manpack transceiver covering 6 - 9 MHz, AM (A3), p_out 0.3 Watt; powered by battle battery with HT 180/90 V and LT 1,5 V and GB 20 V or vibrator power unit SC-999-F powered by 2 V accumulator. Telescopic aerial, 6 or 12 foot rod aerial or 25 ft ground aerial.

  Used by Canadian Army for short range communications between paratroops and infantry patrols.

  Suffix T indicates the set is tropicalised.

  The set is a Canadian developement to replace British Wireless Set No.18, it has not been generelly adopted by the British Army.

• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Literature/Schematics (1)
• Wireless for the Warrior Vol. 1, L. Meulstee
