- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 278081
-
- alternative name: Continental Radio & TV
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / C: 8 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Material
- Metal case
- from Radiomuseum.org

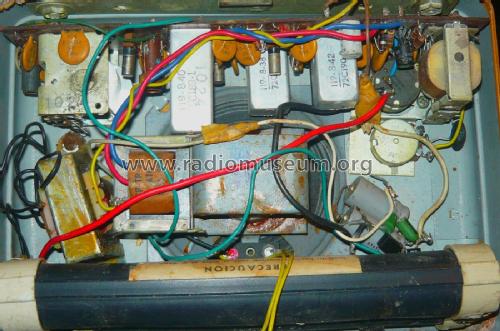

- Model: 1024 Ch= 8L1 - Admiral brand Continental
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 240 x 210 x 85 mm / 9.4 x 8.3 x 3.3 inch
- Notes
-
2 loudspeakers : front 10 cm, rear 8 cm.
Ferrit antenna inside handle.
Wrong demodulator diode called 2N295 must read 1N295
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
- Author
- Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
