• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1950

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 182430

• • alternative name: Continental Radio & TV

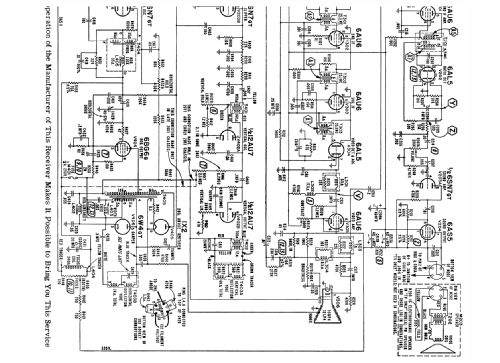

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6AG5 6J6 6AU6 6AL5 6SN7GT 6AS5 6AU6 6AU6 6AU6 6AL5 6AU6 12AU7 12AU7 6SN7GT 6BG6G 1X2 6W4GT 5U4G 12LP4

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 12X12 Ch= 20Z1 - Admiral brand Continental

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Admiral 12X12;
  b/w TV with US FCC standard VHF turret tuner.

• Mentioned in

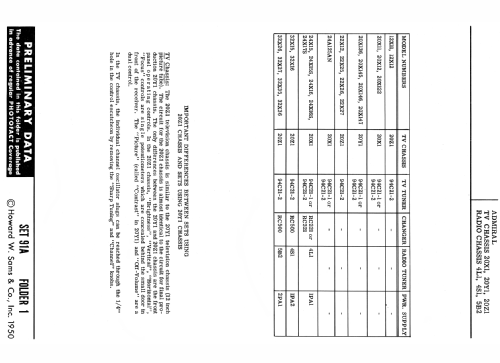

• Photofact Folder, Howard W. SAMS (Set 91A Folder 1)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
