27K26 Ch= 21F1

• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 310686

• • alternative name: Continental Radio & TV

• Picture

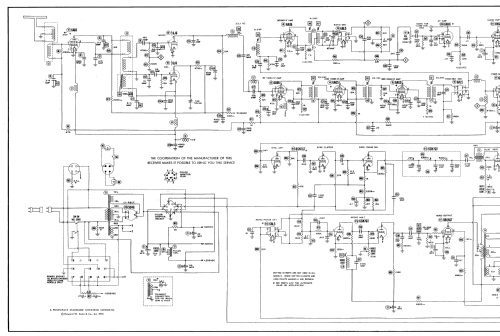

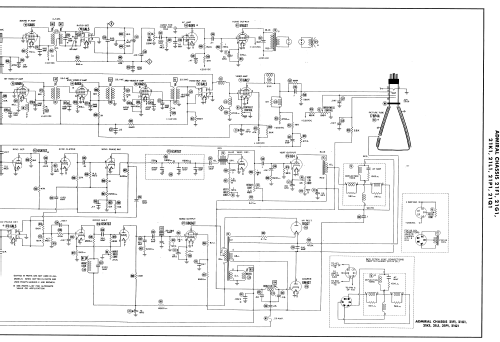

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6CB6 or 6BC5 or 6AG5 6J6 6AU6 6AG5 or 6AU6 or 6CB6 or 6BC5 6AG5 or 6AU6 or 6CB6 or 6BC5 6AL5 6AC7 6AU6 6AL5 6AV6 or 6SQ7 6V6GT 6SN7GT or 12AU7 6SN7GT 6S4 6AL5 or 6H6 or 12H6 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 17BP4 or 17RP4

• Main principle
• Superhet with RF-stage

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 27K26 Ch= 21F1 - Admiral brand Continental

• Notes

• Admiral model 27K26 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 21F1, VHF tuner 94C18-4 and picture tube 17BP4 or 17RP4.

• Literature/Schematics (1)

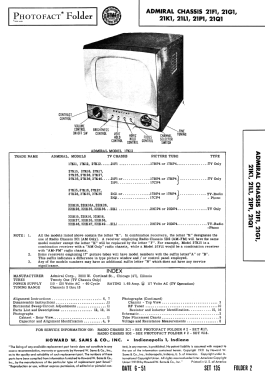

• Photofact Folder, Howard W. SAMS (Set 127 Folder 1A dated 51)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 135, folder 2, dated 6-51)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 156, folder 2, dated 1-52)

• Author
• Model page created by Gary Streeter. See "Data change" for further contributors.
