- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1949 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 239240
-
- alternative name: Continental Radio & TV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 6J6 6J6 6J6 6AG5 6AU6 6AU6 6AU6 6AL5 6AU6 6K6GT 6AU6 6AU6 6AL5 6BJ7 6Y6G 6BA6 6AU5 6SN7GT 6SN7GT 6K6GT 6AL5 6J6 6V6GT 6BG6G 1B3GT 5V4G 5U4G 5Y3GT 10BP4
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 30A15 Ch= 30A1 - Admiral brand Continental
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Channels 2 through 13

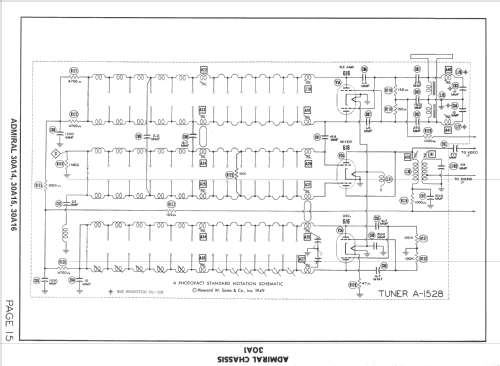

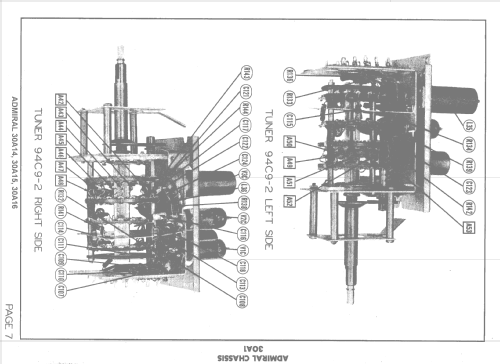

For V1 used 6AG5 in #94C8-2 tuner and 6BH6 in #94C9-2 tuner.
For V2 used 6J6 in #94C8-2 and 6AG5 in #94C9-2 tuner.
For V3 used 6C4 in in#94C9-2 tuner in Chassis with Suffix E
For V5 used 6AG5 and for V6 6AU6 used 6AG5
- Mentioned in
- Photofact Folder, Howard W. SAMS (495-2 Set 57 Folder 2)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
