32X36 Ch= 20Z1 + 5B2
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1950 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 191574
-
- alternative name: Continental Radio & TV
Old Magazine Advertising!

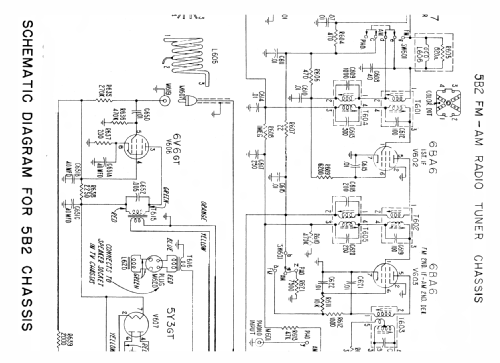

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 12AT7 6AU6 6AL5 6BA6 6BA6 6V6GT 5Y3GT 6A5 6J6 6AU6 6AL5 6SN7GT 6AS5 6AU6 6AU6 6AU6 6AL5 6AU6 12AU7 12AU7 6SN7GT 6BG6G 1X2 6W4GT 5U4G 12LP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

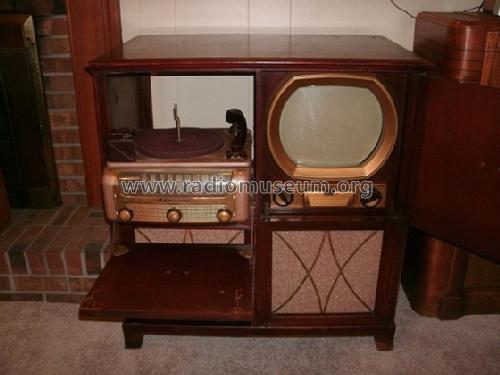

- Model: 32X36 Ch= 20Z1 + 5B2 - Admiral brand Continental
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 33.5 x 34.5 x 23.5 inch / 851 x 876 x 597 mm
- Source of data
- Photofact Folder, Howard W. SAMS
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (100-1)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 91A Folder 1 1950)
- Author
- Model page created by Mark Skala. See "Data change" for further contributors.
