- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 243298
-
- alternative name: Continental Radio & TV
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Line (AC, UC or DC not known)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org

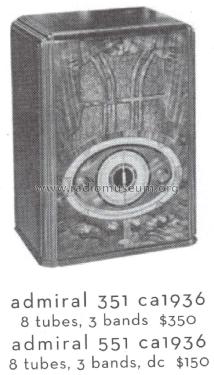

- Model: 351 Ch= AM3 - Admiral brand Continental
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 15 x 21 x 12.5 inch / 381 x 533 x 318 mm
- Notes
-
4 Tuning bands:
LW 150 375 kHz "Weather" MW 550 1700 kHz "Broadcast" SW 1 1.7 5.4 MHz "Police" SW 2 5.5 18 MHz "Foreign"
- Mentioned in
- Cathedral & Tombstone Radios (page 34.)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 15 = 1947 and before (Admiral pgs. 15-1 to 15-3)
- Literature/Schematics (2)
- Rider's Perpetual, Volume 10 = 1939 and before (Spiegel pg. 10-37)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
