- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1950 ??
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 248570
-
- alternative name: Continental Radio & TV
Admiral Sales Brochure

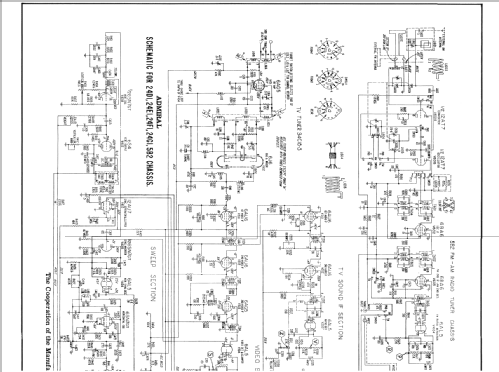

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 12AT7 6BA6 6BA6 6AL5 6AU6 6AG5 6J6 6AU6 6AU6 6AL5 6SQ7 6V6GT 6AU6 6AU6 6AG5 6AL5 6AU6 6AC7 6SN7GT 6S4 12AU7 6AL5 6SN7GT 6CD6G 1B3GT 6W4 5U4G 6AX5 19AP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 39X25 - Admiral brand Continental
- Shape
- Console with any shape - in general
- Notes
-
19" Magic Mirror Television with Triple-Play Phonograph (33, 45 und 78 rpm) and FM-AM Dynamagic Radio.
18th Century Walnut Cabinet.Picture tube = 19AP4.
Radio chassis (AM-FM) = 5D2.
Record changer = RC 550.
- Price in first year of sale
- 595.00 USD
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 91A Folder 2 1950)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
