• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 224209

• • alternative name: Continental Radio & TV

• Number of Tubes
• 6

• Valves / Tubes

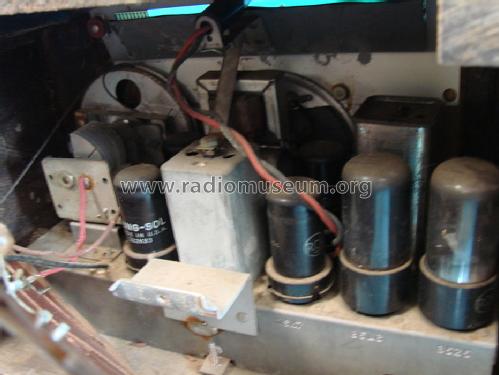

• 12SJ7 12SA7 12SK7 12SQ7 35L6 35Z5

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

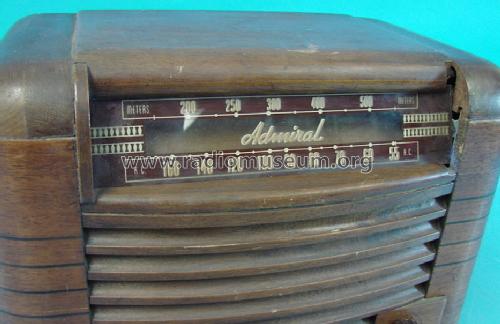

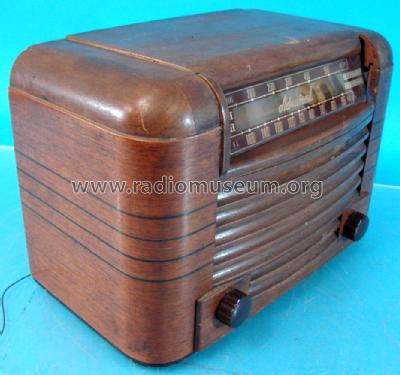

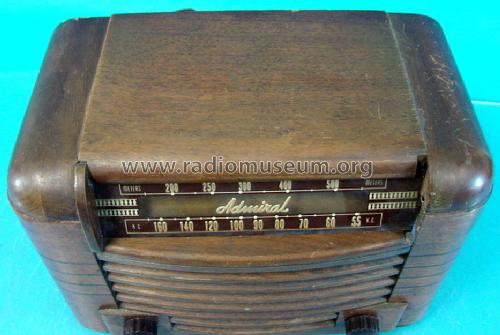

• Model: 4203 Ch= B6 - Admiral brand Continental

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13 x 9 x 7 inch / 330 x 229 x 178 mm

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 5, 1942

• Author
• Model page created by Mark Skala. See "Data change" for further contributors.
