- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1957–1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68777
-
- alternative name: Continental Radio & TV
Levick
RECONSTRUCTED LABEL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

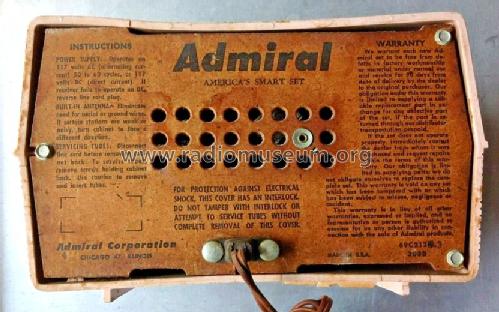

- Model: 4L24 Ch= 4L2 - Admiral brand Continental
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- color pink.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 17, 1957
- Mentioned in
- Collector's Guide to Antique Radios (6th edition)
- Literature/Schematics (1)

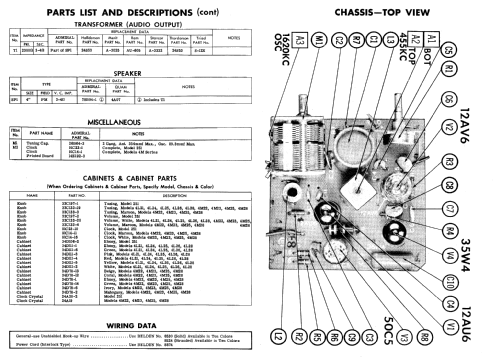

- Photofact Folder, Howard W. SAMS (Date 6-59, Set 446, Folder 4)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
