• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1957–1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68779

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AU6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 4L25 Ch= 4L2 - Admiral brand Continental

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 8.25 x 5.5 x 5.75 inch / 210 x 140 x 146 mm

• Notes
• color red.

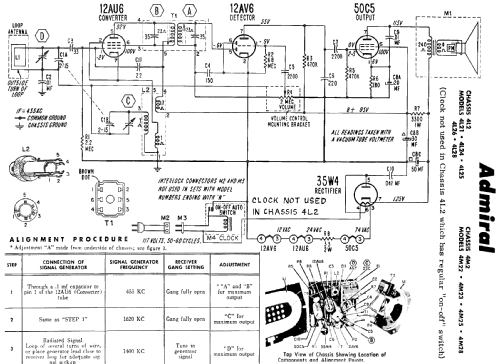

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)

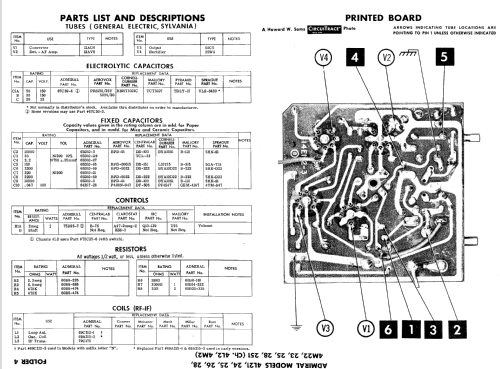

• Photofact Folder, Howard W. SAMS (Date 6-59, Set 446, Folder 4)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
