- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1952 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31220
-
- alternative name: Continental Radio & TV

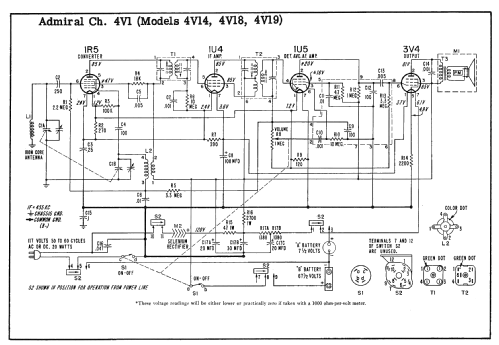

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC: 117=105-125 or Battery pack: 7.5 & 67,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 4V18 Ch= 4V1 - Admiral brand Continental
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 230 x 195 x 110 mm / 9.1 x 7.7 x 4.3 inch
- Notes
- Color=Green.
Also in Mahogany as 4V12 and in Red as 4V18.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 23 (last), covering up to 1954
- Mentioned in
- Guide to Old Radios
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 378 vol.38 P.38 Photofact Servicer dated 11-57)
