• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132525

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6SK7 6K6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• from Radiomuseum.org
• Model: 57 Ch= B7 [Issue B] - Admiral brand Continental

• Notes
• Built in loop antenna.

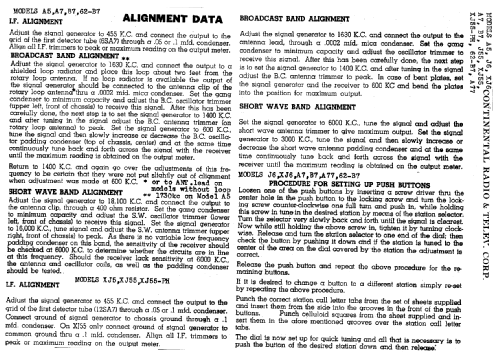

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
