• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83883

• • alternative name: Continental Radio & TV

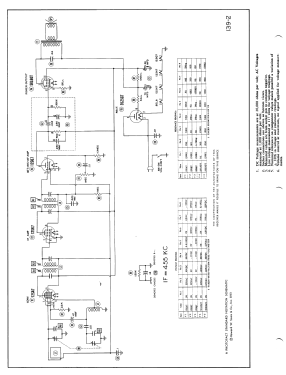

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 5E21 Ch= 5E2 - Admiral brand Continental

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Admiral model 5E21 is an AC-DC operated superheterodyne receiver.The SAMS Photofact lists the following Admiral models for the same chassis: 5E21 (color = ebony), 5E22 (mahagony) and 5E23 (ivory) with chassis 5E2. The models have a built in loop antenna and differ only in color.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 12, 1952

• Literature/Schematics (1)
• Rider's Perpetual, Volume 22 = covering 1951 (SAMS Photofact date 7-51, set 139, folder 2, title copy)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
