- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1952 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31319
-
- alternative name: Continental Radio & TV
From: "Rider's" Volume XXIII covering 1954.

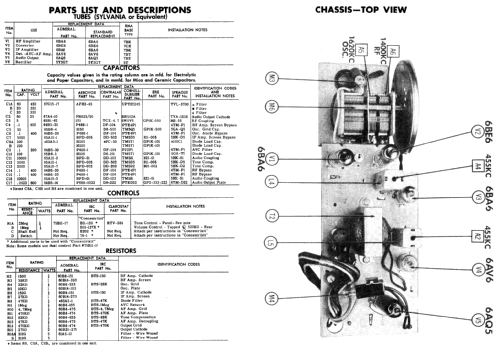

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6N25 Ch= 5R2 - Admiral brand Continental
- Shape
- Console with any shape - in general
- Notes
-
Model 6N25, 6N26 and 6N27 are combination sets consisting of a 5R2 AM radio chassis, a 1PA4 power supply, and a RC550 record changer. Input power 80 Watts.
Color=Walnut.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 23 (last), covering up to 1954
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 165, Folder 3, April 1952)
