5T36 Ch= 5T3

Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 227192
    • alternative name: Continental Radio & TV

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: 5T36 Ch= 5T3 - Admiral brand Continental
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes

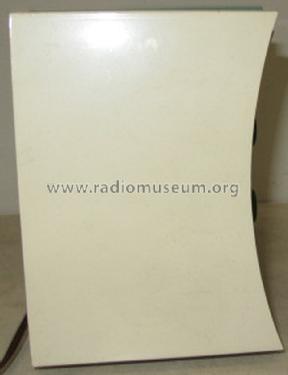

  • The Admiral 5T36 is an AC/DC operated 5 tube BC band receiver.  Cabinet color is turquoise/white.

    Beitman 155 shows Admiral models 5T31, 5T32, 5T33, 5T34 and 5T38 for chassis 5T3. It is the same circuit as chassis 5R3 and 5S3 on the same sheet, where only chassis 5S3 with electric clock radios differs with the clock associated switch. SAMS Potofact date 4-55, set 272, folder 1 show the Admiral models 5R32, 5R33, 5R35, 5R36, 5R37 and 5R38 with chassis 5R3 and the models 5S32, 5S33, 5S34, 5S35 and 5S38 with chassis 5S3 but without chassis 5T3. The color is given by the last digit, 1 = color black, 2 = brown, 3 = ivory, 4 = beige, 5 = red/white, 6 = turquoise/white, 7 = eony/white and 8 = green. The models have a loop antenna.

  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
